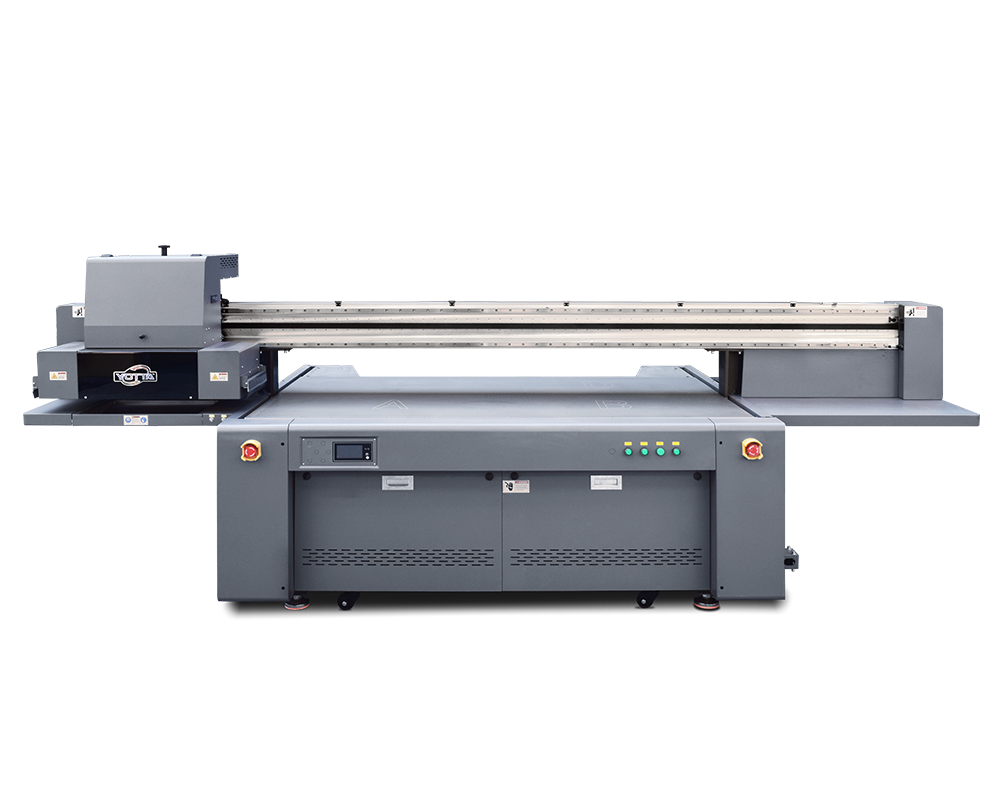

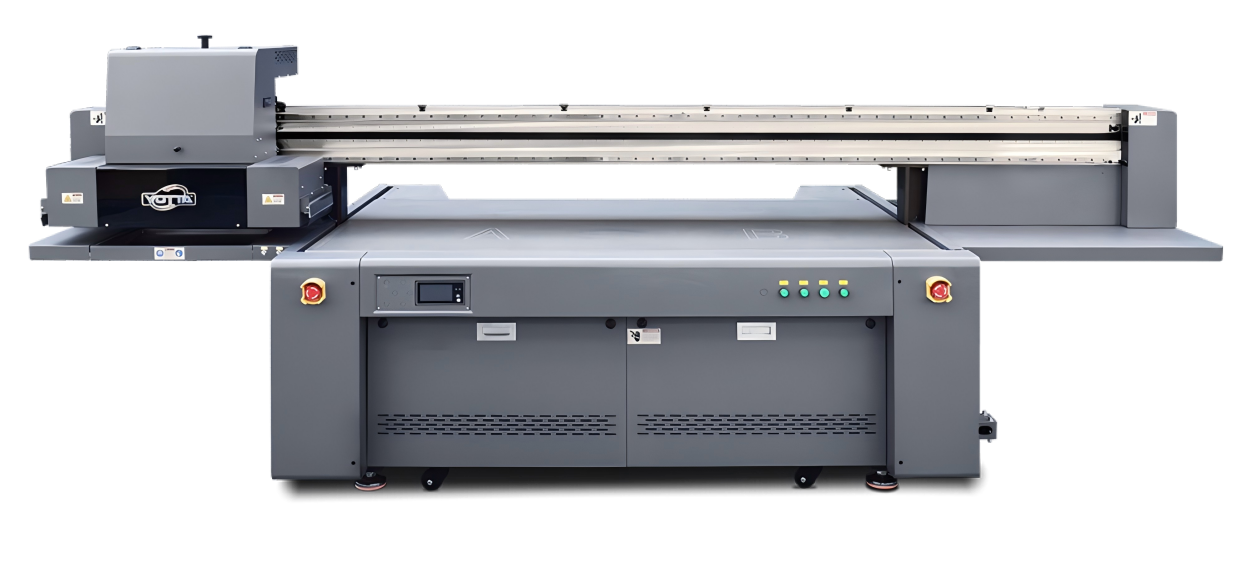

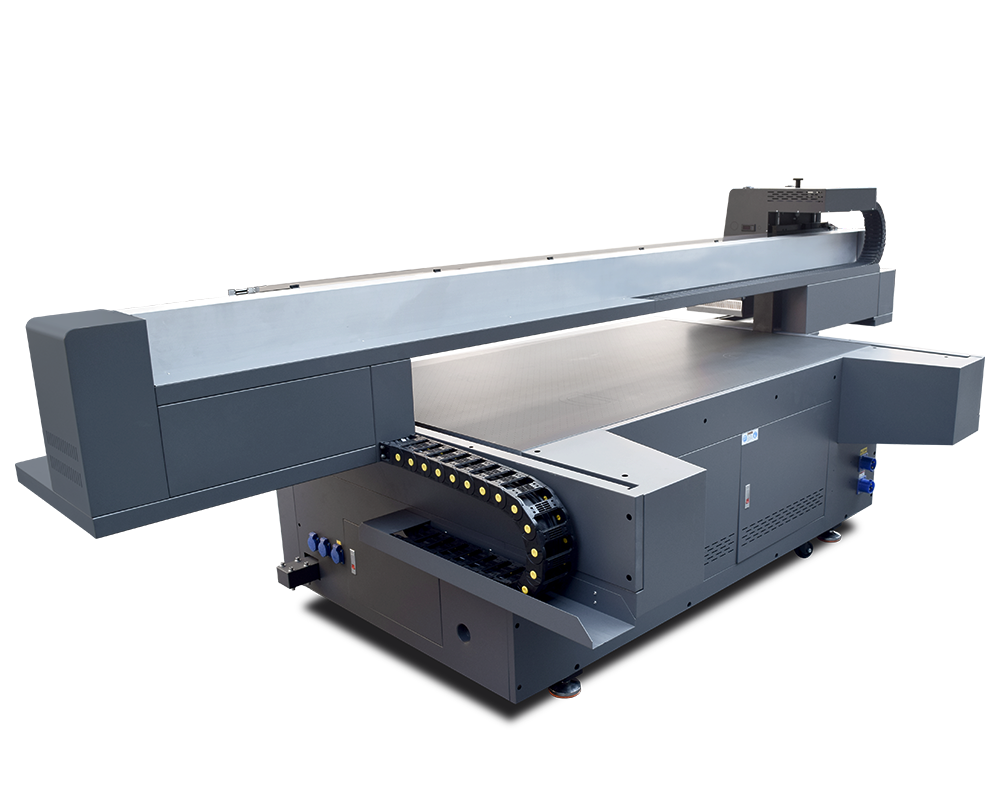

YD-P10R5 is a competitive digital UV flatbed printer using original imported Panasonic servo system, which makes it work stably and have long life time that more than 10 years. Adopting new 3-8 pcs grey level Ricoh Gen5 internal heating industrial micro Piezo print head, It can ensure smooth ink jetting when uv printing. This machine has 7 colors options with 7-35pl variable droplet printing capability, making precise and intensive UV printing. It can print any flat materials that thickness are less then 180mm.

Advance features of P10R5 led uv flatbed printers.

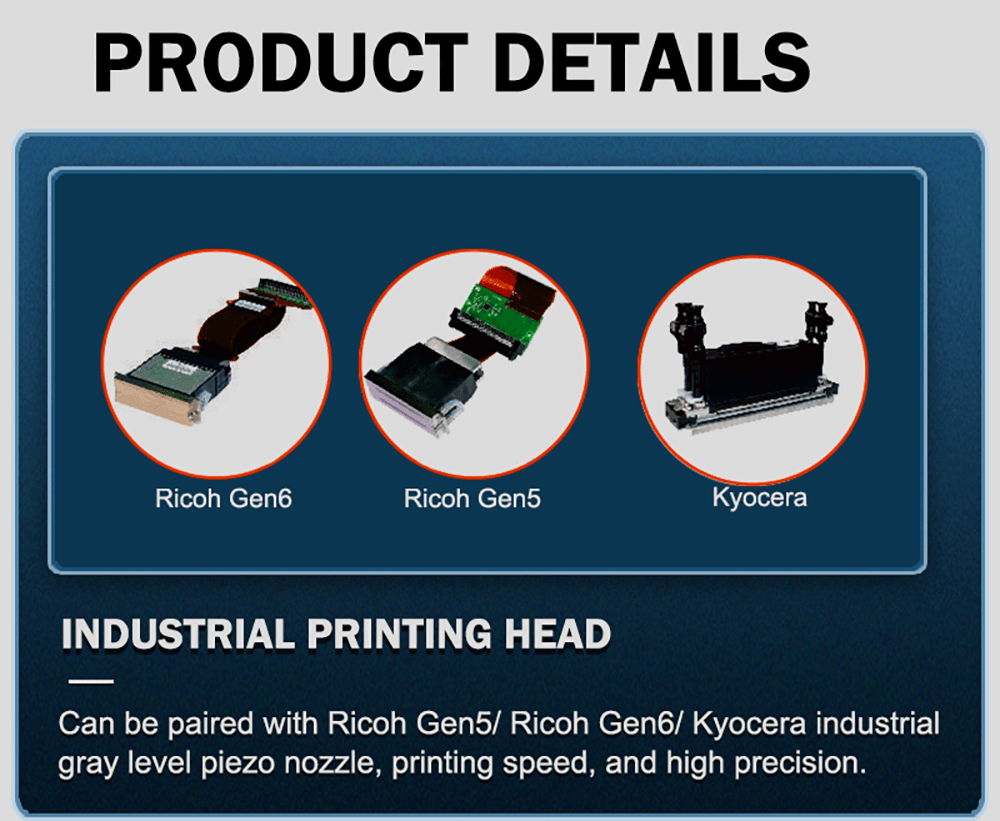

1.  Ricoh Gen5 print head

Imported from Japan, Ricoh Gen5 print head is the high level print head in the industry. With the variable ink droplet range of 7-35pl, it’s highest print resolution is 600 × 2400dpi. Besides, the lifetime of Ricoh printhead can be longer than 5 years if it is well maintained.

2.  Drawer type ink add device

YD-P10R5 digiatal UV flatbed printer adopts brand-new ink tank design, easy to use and maintain.

3.  Automatic thickness measuring

YD-P10R5 digital uv flatbed printer automatically measure with senses thickness of media, which eliminate the procedure that we measure thickness by ourselves, avoiding damage caused by human error. It is very efficient and accurate.

4.  Automatic anti-collision function

The new anti-collision structure is sensitive and pratical, when coming across with collision ,the print head carriage will stop automatically in order to protect printheads and the whole machine from damage.

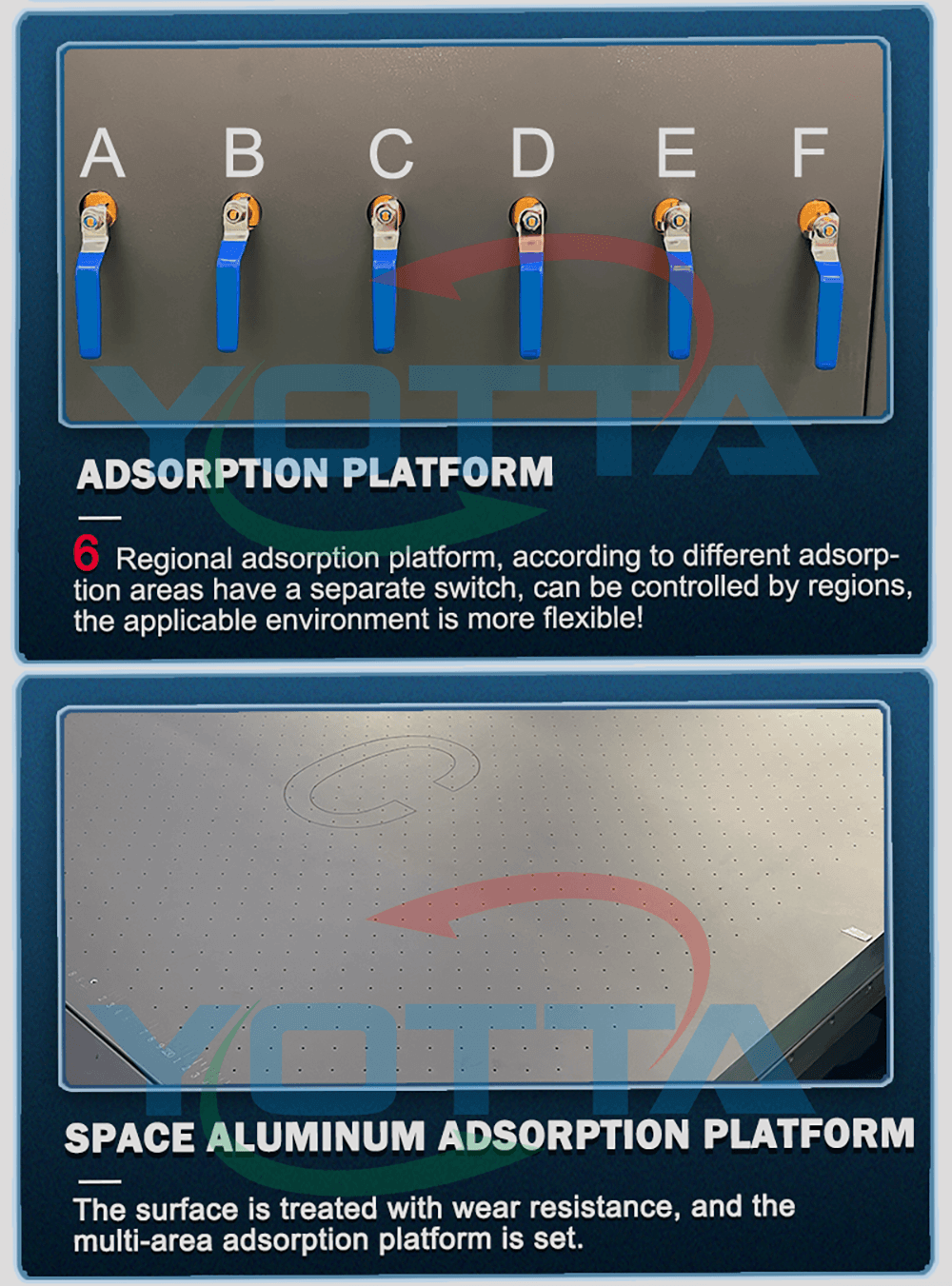

5.  The suction platform

The suction platform has an area-controlled suction function with six new ABCDEF areas, which  use more flexible layout increased application surface for different formats of printing media.

6.  New added ink tank level display system

Convenient to check the ink level of the main ink tank in a timely manner with integrating vision and hearing, which is convenient and practical.

7.  Ink thermostat system

This system helps the printer keep ink viscosity in low temperature. It can adapt to ambient temperature automatically, ensuring high-quality digital UV flatbed printing.

8.  Double negative pressure system

Ultra-high stable dual negative pressure system, white varnish color independent negative pressure system to make the negative pressure more accurate.

9.  Multi-color printing

The color options include CMYK, Lc, Lm, and it also allows white ink and varnish printing. Therefore, the YD-P10R5 printer can achieve 3D, embossed, glossy effect etc, meeting the special printing needs of various industries.

10. UV LED curing system

YOTTA’s P10R5 employs UV LED light for ink curing system, can help ink dry quickly and save more energy. It is environmental, effective, and has a long using life.
